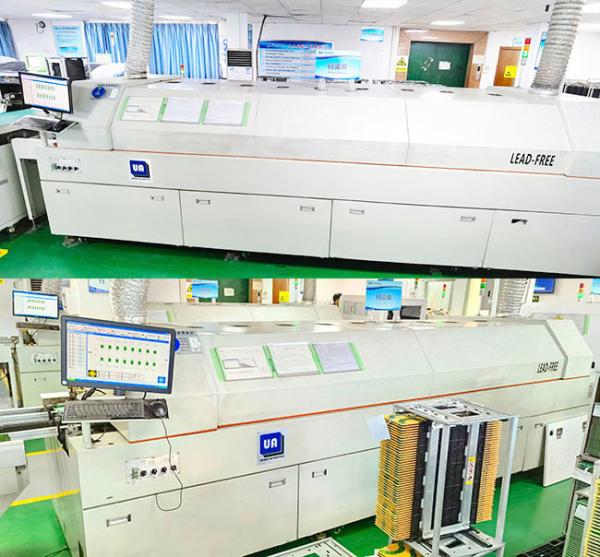

Lead Free SMT Reflow Soldering Machine for Production Line RF-600I
Features
1. Automatically monitoring and displaying the working condition of the oven the parameter
of the oven can be modified at any moment
2. Even temperature and high heat compensation efficiency,
especially suitable for soldering of BGA CSP components.
3. All temperature zone applies coercive independent cycles PID controls and up & down heating style,
which make the temperature of theoven accurate with a large heat capacity.
4. The upper cover of the oven is raised by electric handspike, safe and credible.
5. The guide rail is made of special aluminum alloy with high rigidity accuracy and intensity,
with auto chain lubricating system
6. Quick warm up, it takes less than 20 minutes to heat fromthe normal temperature to the working temperature
7. Powerful programming software’s controlling system, it can detect the online temperature
of PCB and can analysis save and print the profiles
8. SMEMA compatible
The Process of Reflow Oven
The reflow oven process is that when the circuit board with printed solder paste and good
components enters the reflow oven furnace, the circuit board is driven by the reflow oven
rail transport chain to pass through the preheating zone, heat preservation zone, soldering
zone and cooling zone of reflow oven in turn After the temperature changes of the four
temperature zones of reflow oven, the reflow oven process of the circuit board is completed.
The following specifically explains the soldering change process when the circuit board
passes through the four temperature zones of reflow oven in sequence.
Specifications
| Model | RF-600I |
| No. of Heating Zones | Top 6 & Bottom 6 |
| No. of Cooling Zones | 1 |
| Length of Heating Zones | 2600 MM |
| Temp. Setting Range | Rome Temperature ~320C |
| Temperature Control Precision | ± 1C |
| Temperature Deviation on PCB | ± 1.5C |
| Nozzle Plate | Stainless Steel Plate |
| Cooling Method | Air Oven : Forced Air;
Nitrogen Oven : Water Chiller |
| Components Clearance | Top / Bottom Clearance of PCB is 25mm |
| Max. Width of PCB | 50 ~ 400 MM |
| Conveyor Height | 900± 20 MM |
| PCB Conveyor Method | Mesh and Rails |
| Conveyor Direction | Option |
| Convryor Speed | 20-2000MM/min |
| Mesh Width | 450 MM |
| Power Supply | 380V 50HZ / 220V 60HZ |
| Startup Power | Approx. 27KW |
| Normal Operation Power | About 5KW |
| Dimension ( L*W*H ) | 4500*1300*1450 |
| Weight | 1500KG |
Package and Shippment
Q1: What’s your terms of packing ?
We usually adopt this method : internal vacuum packing and outer wooden packing.
Or according to your requirement.
Q2 : Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
Q3:If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q4 : What is your payment terms?
T/T, L/C, etc
Q5 : What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q6: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10
years’ experience in this line. OEM & ODM service are available.
